| Type And Size |

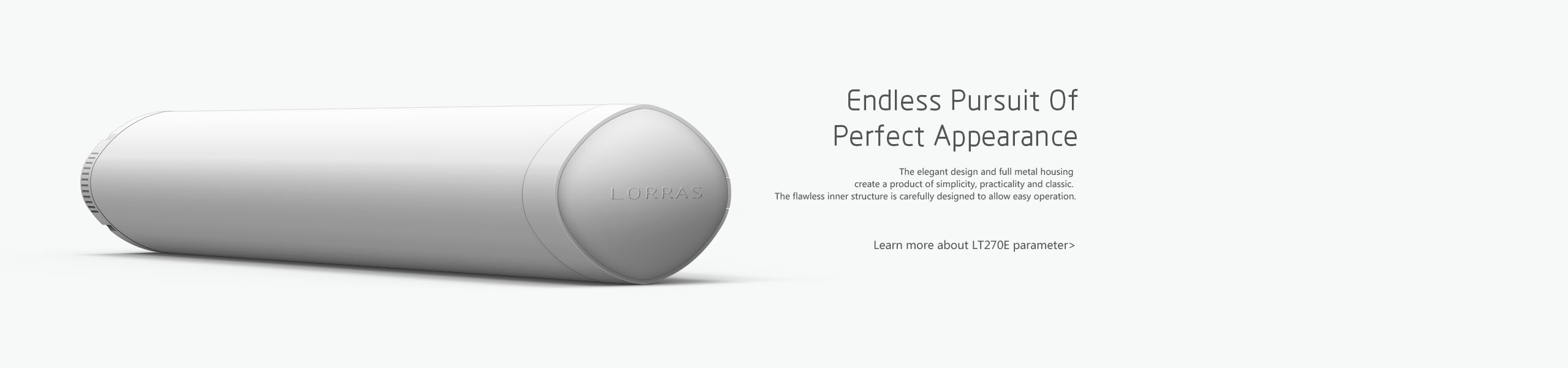

LT270E-45/20
Height 83.8mm
Width 314mm
Thickness 55.5mm
|
LT270E-75/20
Height 83.8mm
Width 314mm
Thickness 55.5mm
|
| Positioning Functions |
Memorized Limit
Integrated Radio Control
Obstuction Detection
Light touch-start
Manual Override
The Third Limit Position
Compatible with Dry Contact Switch
|
Memorized Limit
Integrated Radio Control
Obstuction Detection
Light touch-start
Manual Override
The Third Limit Position
Compatible with Dry Contact Switch
|
| Product Parameters |
Safety Curtain Weight 50kg
Rated Torque 0.8N.m
Open/Close Speed 20cm/s
Rated Voltage 230V
Motor wattage 45W
Rated Current 0.23A
Running Time 20min
Degree of Protection IP40
Max Number of Turn ∞
Track Length 12m
Weight 1.572kg
|
Safety Curtain Weight 100kg
Rated Torque 1.2N.m
Open/Close Speed 20cm/s
Rated Voltage 230V
Motor wattage 75W
Rated Current 0.34A
Running Time 20min
Degree of Protection IP40
Max Number of Turn ∞
Track Length 12m
Weight 1.588kg
|
